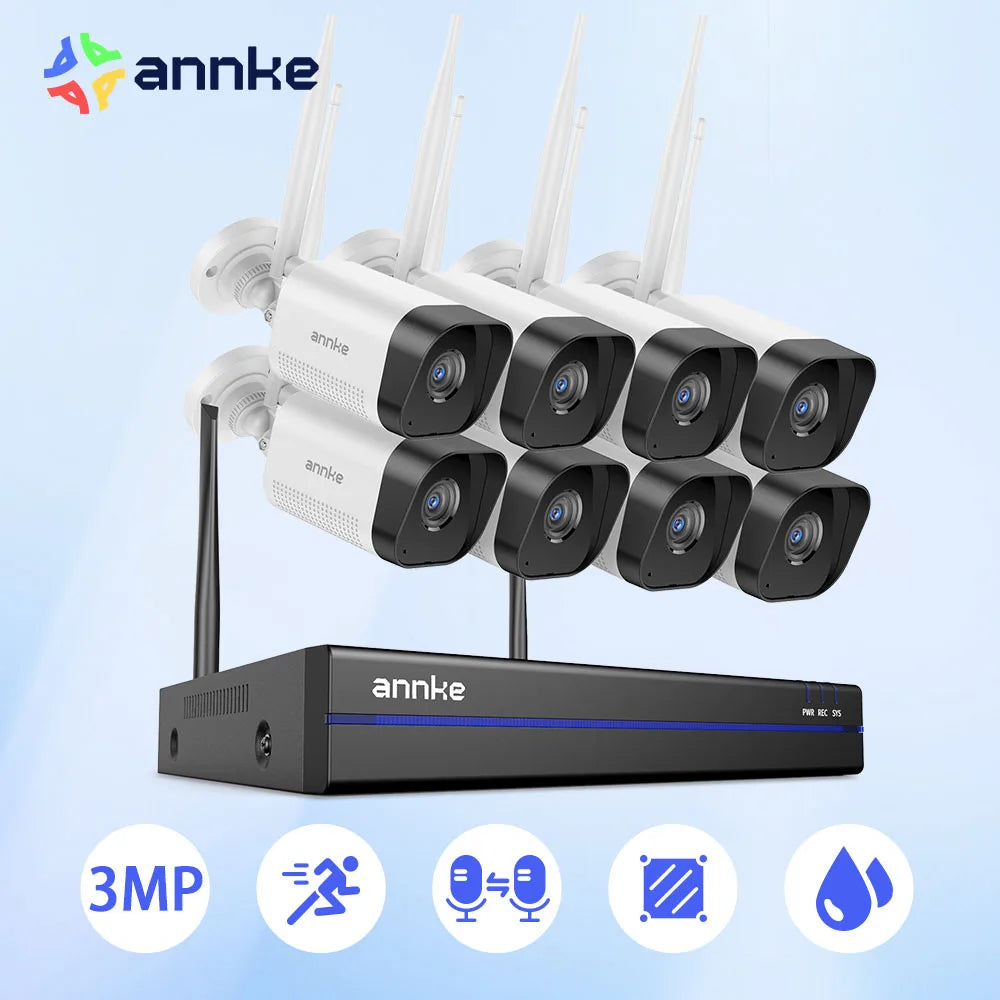

Monitor your home from your phone with this wireless ANNKE security system, featuring 3MP cameras, an NVR, and motion alerts.
-

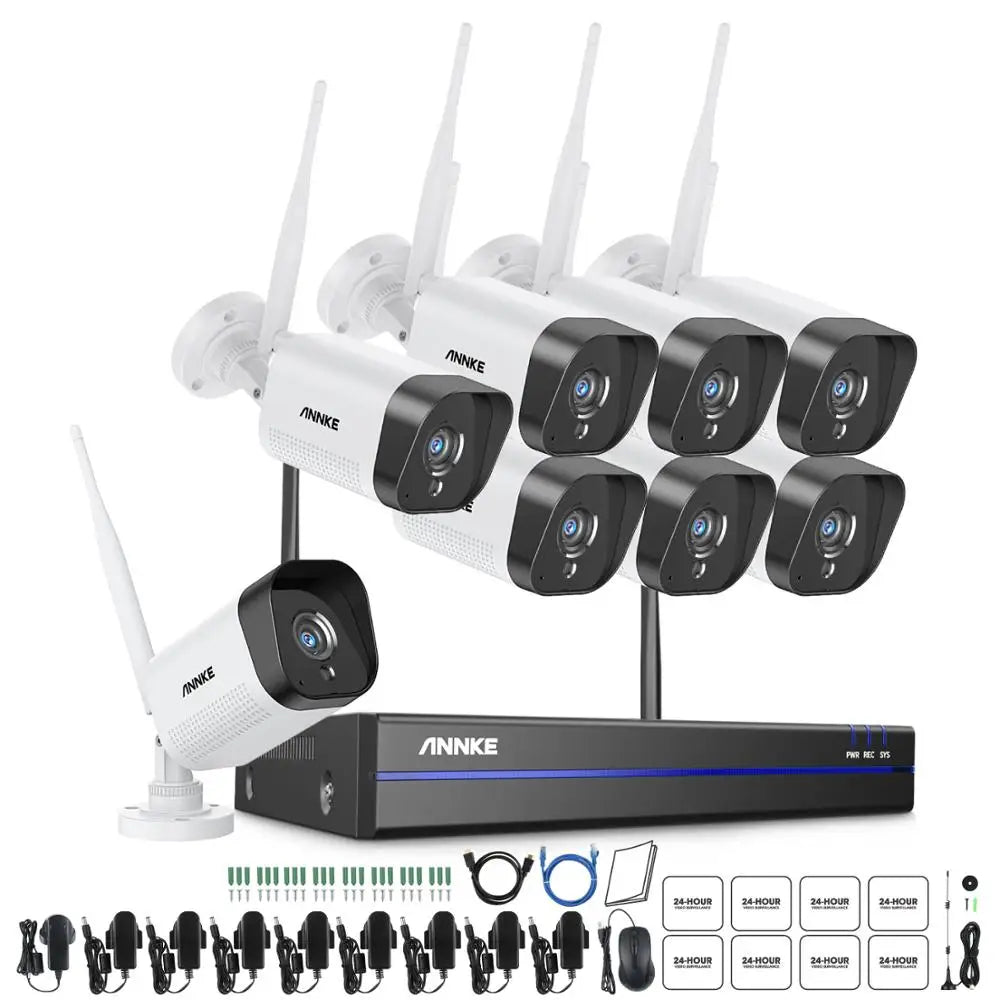

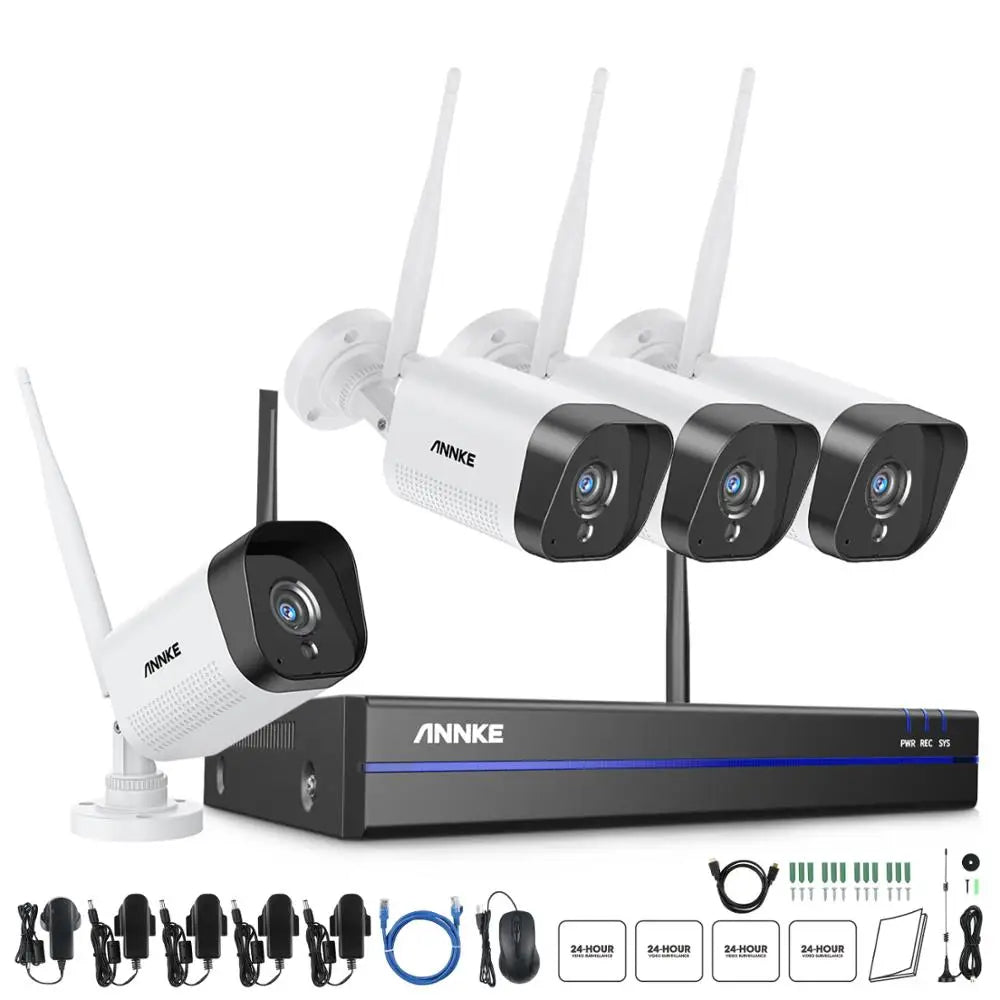

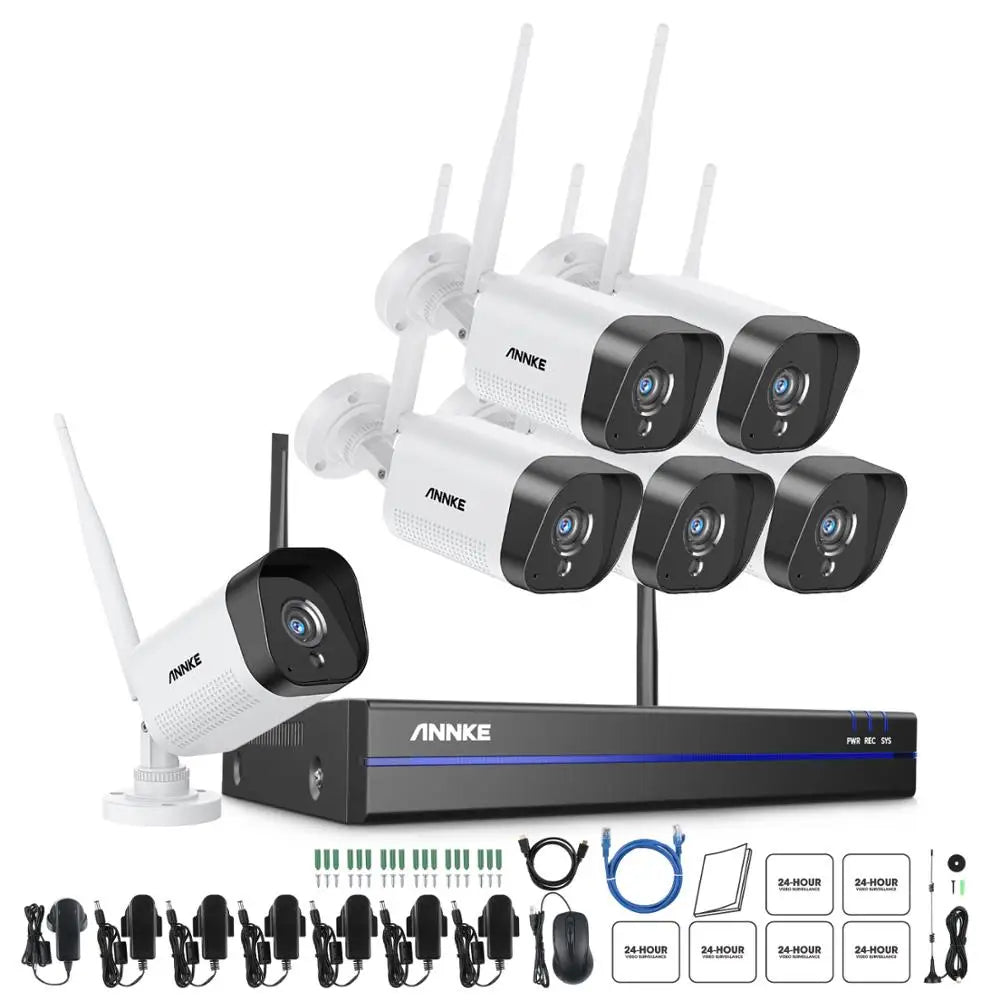

Choose your camera count: Select a 4-, 6-, or 8-camera setup to suit your space; the 8-channel NVR accepts up to eight camera inputs.
-
See clear footage: Cameras capture 3MP video, while the NVR supports recording and playback up to 5MP; H.264+ compression helps manage video storage.
-
Check in day or night: View cameras through the mobile app, with night vision reaching up to 100 ft (30 m) and a 70° viewing angle.
-
Get activity alerts: Motion detection can send instant email alerts, and IP66-rated cameras are suitable for indoor or outdoor use.
NVR |
NVR |
Video Compression |
H.264+ |
IP Video Input |
8CH Wireless |

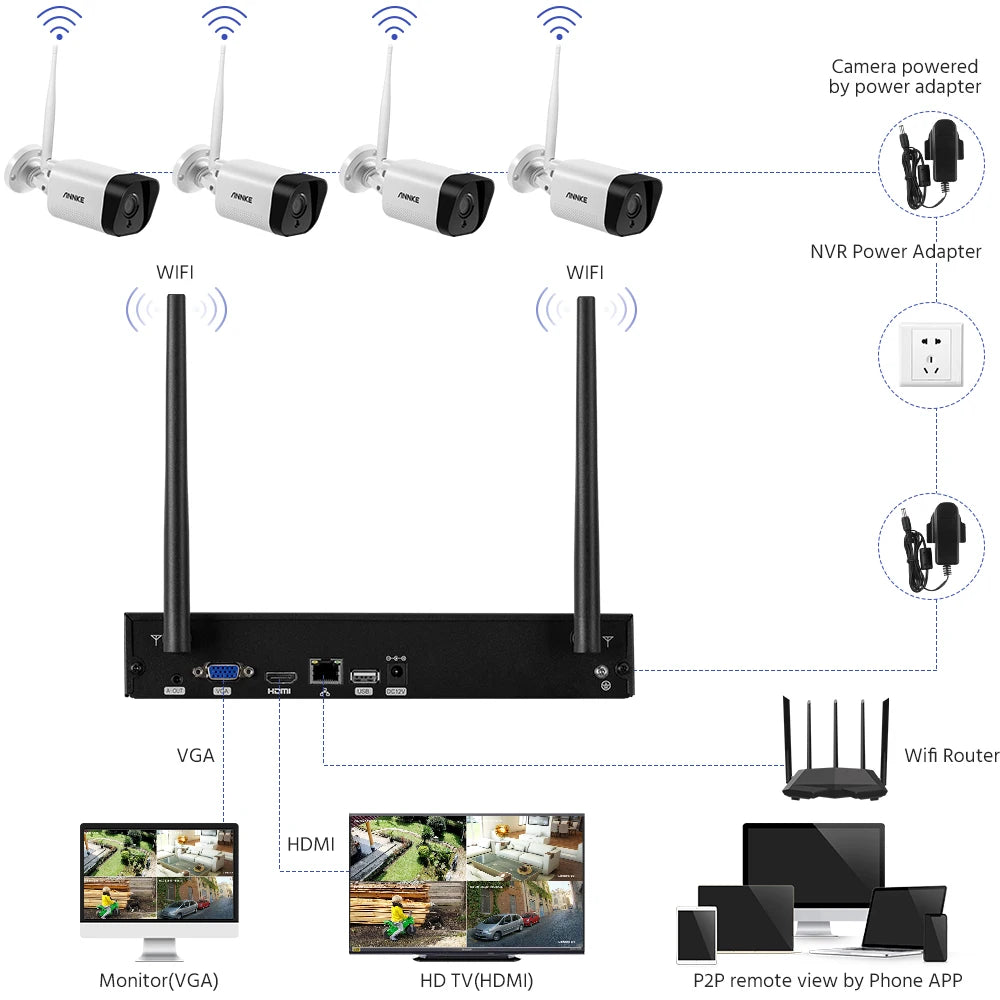

Video Output |
HDMI and VGA up to 1080p |
Audio Output |
Support |
Max Recording Resolution |
Up to 5MP (2560 X 1920) |
Max Playback Resolution |
Up to 5MP (2560 X 1920) |
Max Playback Channel |
4CH |
Max Playback Capacity |
4CH 3MP/2CH 5MP |
Hard Drive |
HDD |
1 SATA Interface |
HDD Capacity |
Up to 6 TB Capacity |
External
Interface |
Network Interface |
RJ45 X1 (10/100 M) |
Wireless Antenna |
2 Ports (IEEE802.11b/g/n) |
WiFi |
2.4 GHz (Built-in Antenna) |
USB |
USB 2.0 X1 |
General |
Housing |
Metal for Main Part |
Operating Power |
DC 12 V |
Power Consumption |
6W (Without HDD) |
Working Temperature |
14 °F ~ 131 °F/-10 °C ~ 55 °C |
Dimensions (W X H X D) |
|
Weight (Without Hard Disk) |
|
IP Camera |
Camera |
Video Resolution |
3MP (2304 X 1296) |
Image Sensor |
1/2.8" Progressive Scan CMOS |
Audio Compression |
G.711A |
Video Compression |
H.264+ |
Lens |
3.6 mm |
Angle of View |
70° |
Number of Infrared LEDs |
18 |
Night Vision Distance |
Up to 100 ft/30 m |
IR-Cut Filter |
Yes |
Ethernet |
RJ45 X1 (10 M/100 M) |
General |
Wireless |
IEEE802.11b/g/n |
Housing |
Plastic for Main Part |
Operating Power |
DC 12 V |
Operating Temperature |
-4 °F – 140 °F/-20 °C – 60 °C |
Indoor/Outdoor |
Indoor/Outdoor |
Weatherproof Rating |
IP66 |
Dimension (L X W X H) |
|
Weight |
|
